Best in class features
The Trail Tracker is built for adventure, offering a smooth and powerful riding experience across challenging terrains. Its thoughtful design ensures comfort and ease, making it perfect for those seeking to explore off-road with unmatched reliability and control.
General Info
Model

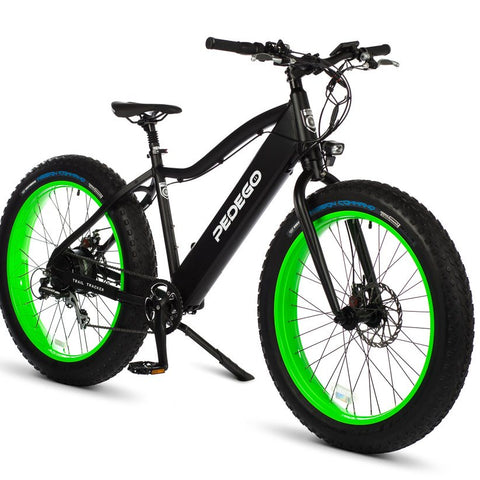

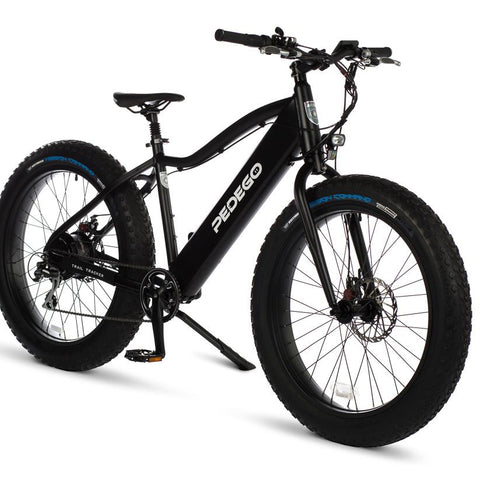

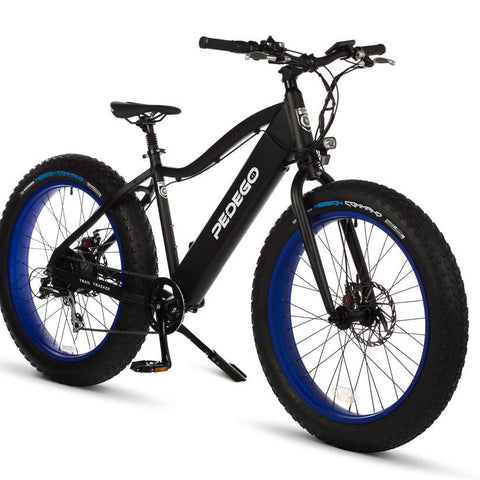

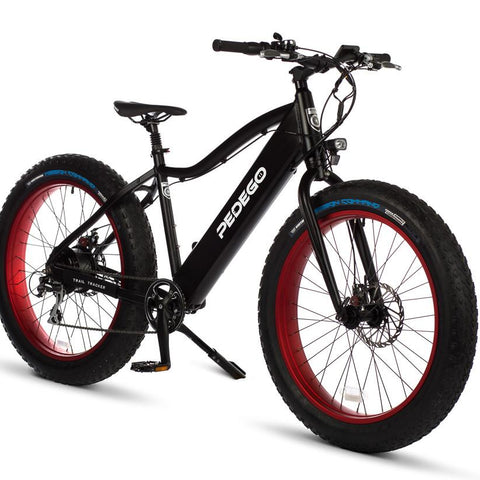

Trail Tracker: 26″ Edition
Weight Limit
250 LB
Ideal Use
Adventure
Speed
UP TO 28 MPH*
Range
UP TO 56 MILES
Pedal Assist
5 Levels Cadence Assist | 5 Levels Torque Assist
Rider Height
5’7”+
Electronics
Motor
BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION
Battery
48 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION.
Charger
PEDEGO 2 AMP SMART CHARGER WITH A COMPLETELY SEALED CASE AND CHARGE INDICATOR LIGHT.
Controller
48 VOLT 20 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.
THROTTLE
CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION.
PEDALSENSE®
FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE.
DISPLAY
3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.
TOP SPEED
CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY)
Drivetrain
DERAILLEUR
SRAM GX 10-SPEED REAR DERAILLEUR; EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE; CAGE LENGTH = SHORT.
CASSETTE
SRAM PG-1030 10-SPEED CASSETTE,11-36T; SMOOTH, POWERGLIDE II™ TECHNOLOGY PROVIDES SUPER-SMOOTH SHIFTING BETWEEN GEARS; DURABLE NICKEL CHROME FINISH.
SHIFTERS
SRAM GX 10-SPEED TRIGGER SHIFTER; SRAM X-GLIDE™ SHIFTING, EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE.
BOTTOM BRACKET
100MM x 167MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR.
CHAIN
KMC X10-EPT 10 SPEED; RUSTBUSTER TREATMENT; 132 LINKS.
CRANK
BLACK 3 PIECE CRANK WITH 5x130MM 52T CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS; INTEGRATED DOUBLE CHAINRING GUARD.
PEDALS
BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS.
Brakes
CALIPERS
STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID.
LEVERS
STAR UNION 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY.
PADS
LOW NOISE RESIN BRAKE PADS WITH STEEL BACKING PLATE, OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS.
ROTORS
STAINLESS STEEL;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE.
Components
FRAME
6061-T6 ALUMINUM ALLOY; 1 ⅛”-1 ½” TAPERED HEAD TUBE; INTEGRATED DOWNTUBE BATTERY MOUNT; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING.
FORK
26” FAT TIRE RIGID HIGH TENSILE STEEL; 1 ⅛”-1 ½” TAPERED THREADLESS STEERER TUBE; QUICK RELEASE 15MM x 150MM THRU-AXLE; DISC BRAKE MOUNTS.
FORK (AFTERMARKET)
ROCKSHOX BLUTO RL; 80MM TRAVEL, SOLO AIR SPRING, 51MM FORK OFFSET; MOTION CONTROL DAMPER WITH REBOUND AND COMPRESSION/LOCKOUT ADJUSTMENTS
HEADSET
BLACK ZERO STACK SEMI-INTEGRATED; 1 ⅛” – 1 ½” THREADLESS TAPERED; ZS44/28.6 | ZS56/40.
SEATPOST
BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD.
SADDLE
MTB STYLE WITH SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 144MM W.
RIMS
26” x 3” FAT TIRE EXTRA STRENGTH DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE.
SPOKES
FRONT: BLACK 13 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. REAR: BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES.
GRIPS
PEDEGO RUBBER LOCK ON GRIPS; DIAMOND GRIP PATTERN.
HANDLEBAR
BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 9° BACKSWEEP, 5° UPSWEEP; 20MM RISE; 720MM WIDTH.
STEM
BLACK 3D FORGED ALUMINUM ALLOY; 80MM LENGTH; 7° RISE; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ⅛ (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER.
TIRES
VEE RUBBER MISSION COMMAND 26” x 4.0”; MULTI PURPOSE RUBBER COMPOUND, 58 A DUROMETER; WIRE BEAD; 8-20 PSI; 26 x 4.0” VEE RUBBER INNER TUBE, SCHRADER VALVE.
Extras
LIGHTS
FRONT: LED WITH ADJUSTABLE MOUNT 60 LUX
KICKSTAND
BLACK URSUS KAISER 69; ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.
TOOLKIT
CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.
Weight
BIKE (NO BATTERY)

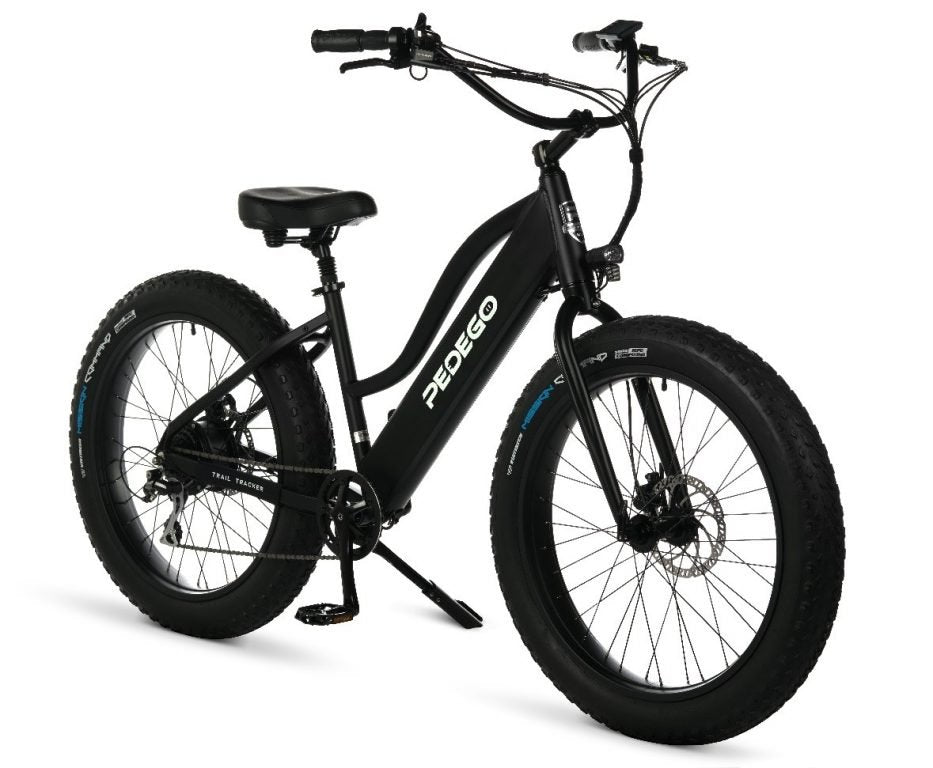

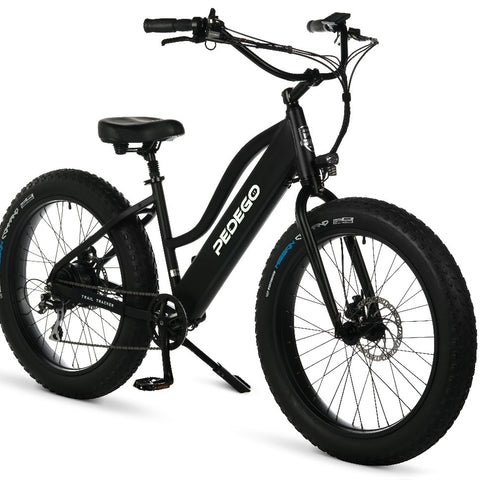

TRAIL TRACKER CLASSIC 26”: 58.8 LB; GORILLA EDITION: 62.2 LB; TT STEP THRU 26”: 60 LB.
BATTERY
48V/14Ah: 8.2LB.
