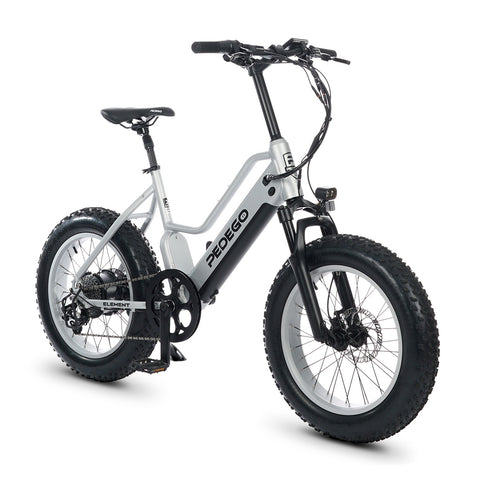

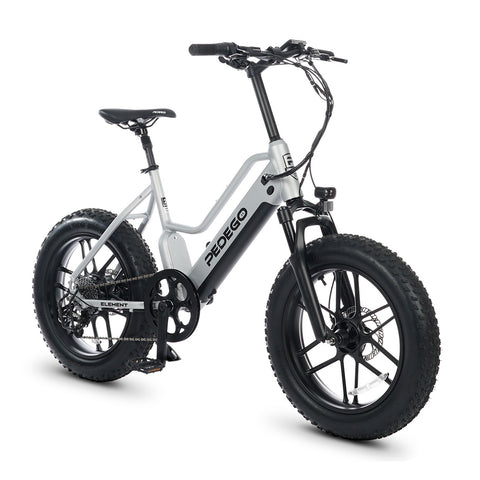

Ultimate Off-Road Power with Premium Performance
The Element Platinum Edition offers enhanced all-terrain capability with powerful motor upgrades, premium components, and a long-lasting battery, designed for riders who demand both style and performance in their electric adventure bike.
Best in class features
Designed for those seeking a premium, versatile riding experience, offering enhanced power and durability for both urban and off-road adventures. It combines top-tier components with thoughtful design, making it ideal for riders who value performance, reliability, and comfort on every ride.
General Info
Model
Element: Platinum Edition
Weight Limit
250 LB
Ideal Use
Mountain Biking
Speed
20 MPH or 28 MPH
Range
UP TO 56 MILES
Pedal Assist
5 Levels Cadence Assist | 5 Levels Torque Assist
Rider Height
4’11″+
Electronics
Motor
BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE W/ WATERPROOF CONNECTION
Battery
48V 10AH OR 14AH INTERNAL DOWNTUBE BATTERY PACK W/ PREMIUM LITHIUM ION 18650 CELLS
Charger
PEDEGO FANLESS 48V 2 AMP SMART CHARGER; SEALED CASE WITH CHARGE INDICATOR LIGHT
Controller
48 VOLT 22 AMP SINE WAVE CONTROLLER W/ CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS
Drivetrain
DERAILLEUR
SRAM GX 10-SPEED REAR DERAILLEUR; CAGE LENGTH = SHORT; FRAME MOUNTED DERAILLEUR PROTECTOR
CASSETTE
SRAM PG-1030 10-SPEED CASSETTE,11-36T; DURABLE NICKEL CHROME FINISH
SHIFTER
SRAM GX 10-SPEED TRIGGER SHIFTER
BOTTOM BRACKET
120MM x 200MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR
CHAIN
10 SPEED KMC X10; 112 LINKS
CRANKSET
BLACK 3 PIECE CRANK W/ 5x130MM 52T 3/32” STEEL CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS
PEDALS
WELLGO COMPOSITE PLATFORM PEDAL; 9/16” SPINDLE; INTEGRATED PEDAL REFLECTORS
Brakes
CALIPERS
TEKTRO 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE CALIPER; MINERAL OIL BRAKE FLUID
LEVERS
TEKTRO 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH
PADS
TEKTRO E10.11 RESIN PAD W/ STEEL BACKING PLATE
ROTORS
TEKTRO TR-24 STAINLESS STEEL ROTORS; 160MM DIAMETER
Components
FRAME
20” FAT TIRE 6061-T6 ALUMINUM ALLOY; INTEGRATED DOWNTUBE BATTERY MOUNT; SEMI-INTERNAL CABLE ROUTING
FORK
20” FAT TIRE COIL SPRUNG SUSPENSION FORK W/ 80MM OF TRAVEL; ADJUSTABLE PRELOAD AND LOCKOUT; 1 1⁄8” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS
HEADSET
BLACK ZERO STACK SEMI-INTEGRATED; 1 1⁄8” – 1 1⁄2” THREADLESS TAPERED; ZS44/28.6 | ZS56/30
SEATPOST
BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD
SADDLE
MTB STYLE W/ SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 165MM W
RIMS
20” x 3” FAT TIRE ALUMINUM ALLOY DOUBLE WALL RIMS; FRONT 13G X 36H / REAR 12G X 36H OR 1 PIECE MAG WHEELS AVAILABLE AFTERMARKET
SPOKES
BLACK HEAVY DUTY 12G REAR / 13G FRONT STAINLESS STEEL SPOKES W/ BRASS NIPPLES
GRIPS
BLACK CLASSIC MUSHROOM STYLE RIBBED RUBBER GRIPS; CUSTOM PEDEGO DESIGN
HANDLEBAR
BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 30MM RISE; 640MM WIDTH
STEM
BLACK ALUMINUM ALLOY; 90MM LENGTH; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 1⁄8 (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER
TIRES
KENDA BLACK WALL 20” x 4.0”; SINGLE RUBBER COMPOUND; WIRE BEAD; 30 PSI MAX; 20”x 4.0” INNER TUBE, SCHRADER VALVE
Extras
BELL
BLACK LEFT HAND MINI ALUMINUM BELL
FENDERS
FENDER SET AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM FENDERS W/ STAINLESS STEEL HARDWARE
LIGHTS
SPORT LED HEADLIGHT W/ INTEGRATED REFLECTOR; 200 LUMEN / 60 LUX
REAR RACK
REAR RACK AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM; 25KG MAX WEIGHT CAPACITY
KICKSTAND
BLACK ALUMINUM ALLOY REAR KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT
TOOL KIT
CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH W/ #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH
Weight
BIKE (NO BATTERY)
SPOKED WHEELS: 57.4 LB; MAG WHEELS: 64.8 LB.
BATTERY
48V/10Ah: 6.4 LB; 48V/14AH: 7.6 LB
